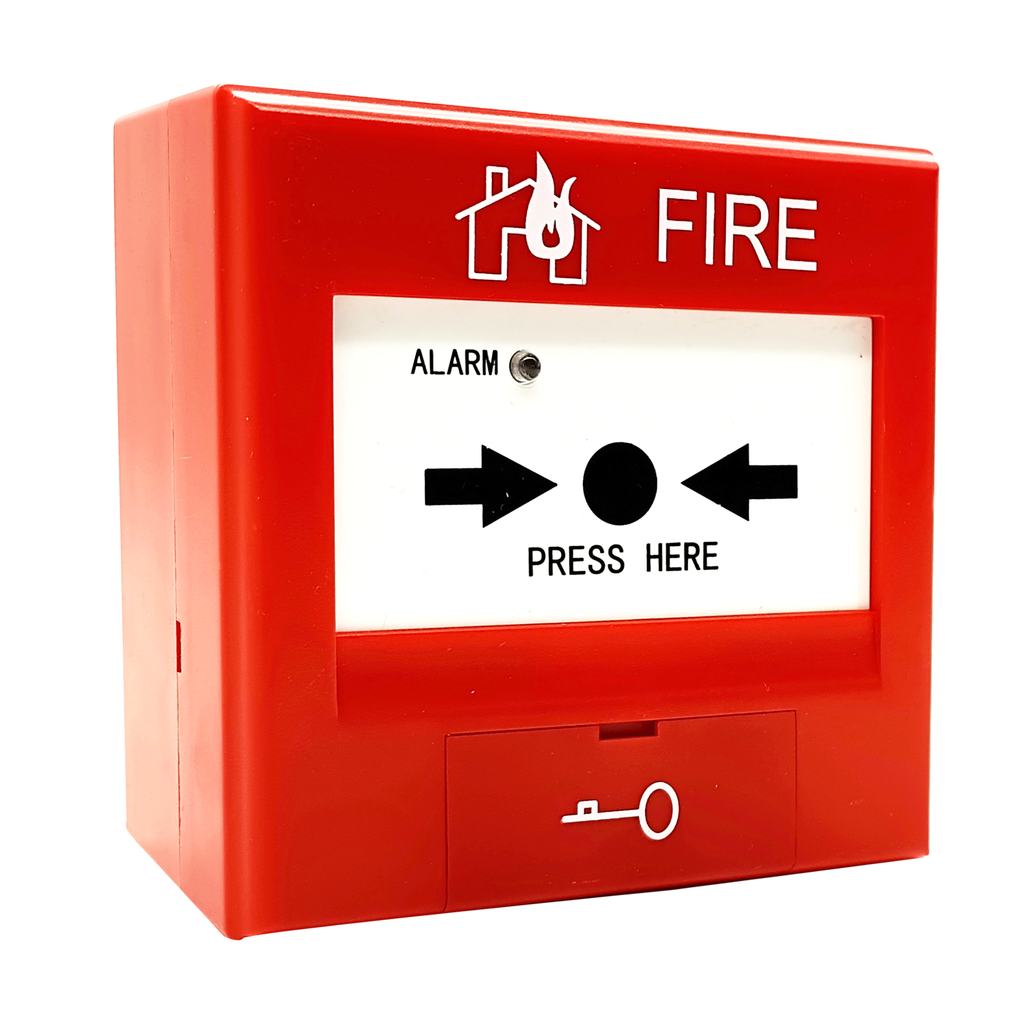

NF5264 Digital Manual Call Point Notofire

filler

Price (excl. GST):
Rs. 3,399
GST @18 % Inclusive Price: Rs. 4,010.82
Free Shipping

Brand Notofire
Usage/Application Fire Alarm System
Model Name/Number NF5264
Weight 120g
Color Red
Shape Square
Dimensions Mm 95x95x44 mm (LxWxH)
Operating Current 0.2mA
Material ABS
Voltage 24V
Alarm Current 0.8mA
Type Of Initiating Part Reusable
Initiating Mode Pressing The Frangible Element Manually
Resuming Mode Manually Resumed By A Special Key
Indicator Red Flashes Every 3s Normally Illuminates After Alarming
Temperature 55 DegreeC

NF5264 Digital Manual Call Point (MCP) is installed in public places. When there is a fire, pressing the frangible element on this MCP can send fire signal to the fire alarm control panel. Ater receiving the signal, the control panel will show address informaton of the MCP and generate alarm sound. NF5264 can be connected to NF5000 series control panel, NF5109, NF5120, NF5160.

Features

• Plug-in structure Simple and convenient         installaton.
• Alarm by pressing, reset by a special key.
• Microprocessor controles devices;digital         signal communicates the fire alarm control      panel. Stable and reliable work, good            ability to inhibit electromagnetc                    interference.
• Electronically addressed. The address can       be modified in field Easy and reliable for          commissioning.
