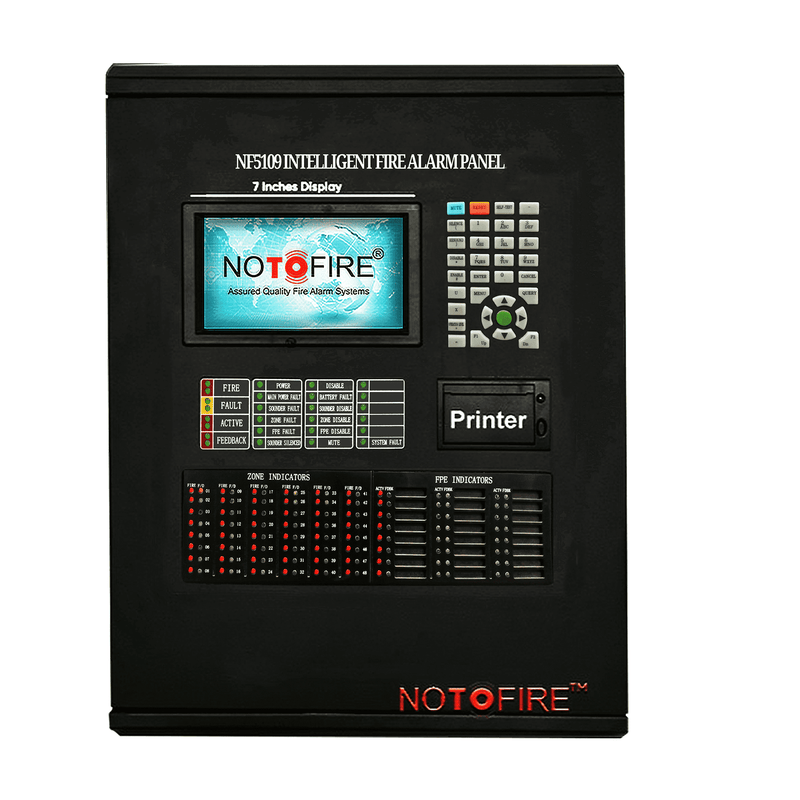

Intelligent Fire Alarm Control Panel- NF5109(with Printer) | Notofire

filler

Product type: Intelligent Fire Alarm
Price (excl. GST):
Rs. 126,000
GST @18 % Inclusive Price: Rs. 148,680
Free Shipping

DESCRIPTION

    • Intuitive 7-inch color LCD display
    • 1-4 Loops and 48 zone expandable panel
    • 1020 devices can be connected
    • 255 devices in each loop
    • Expandable up to 128 Loops
    • Customized display option
    • Fire proof metal body
    • On panel programming available
    • LPCB and EN 54 Approved
    • In-built printer for event log printing
    • Easy networkable panel
    • 1-Year Warranty(Extendable)

SPECIAL ADDITION/DETAILS:

Brand: Notofire

System Components: Fire Alarm Control Panel

Type: Fully Automatic

Usage/Application: Industrial

Body Material: Mild Steel

Color: Grey



Brand Notofire
System Components Fire Alarm Control Panel
Type Fully Automatic
Usage/Application Industrial
Body Material Mild Steel
Color Grey
Alarm Volume 105 dB
Voltage 230V
Dimensions 230x50x140 mm (LxWxH)
Alarm Current 0.3mA
Shape Rectangular


    Specification


    Mains AC230V (4A); Voltage Range: +10%~- 15%
    Battery 12V/12AH sealed lead acid battery*2
    LCD Screen Size 7-inch color LCD screen; Resolution: 800x480 Pixels
    Operating Environment Temperature; +5°C~+50°C; Relative Humidity: <95%, non-condensing
    Capacity 255~1020 addressable points; 1~4 Loops; up to 48 zones
    Communication Interface RS485, CAN, USB

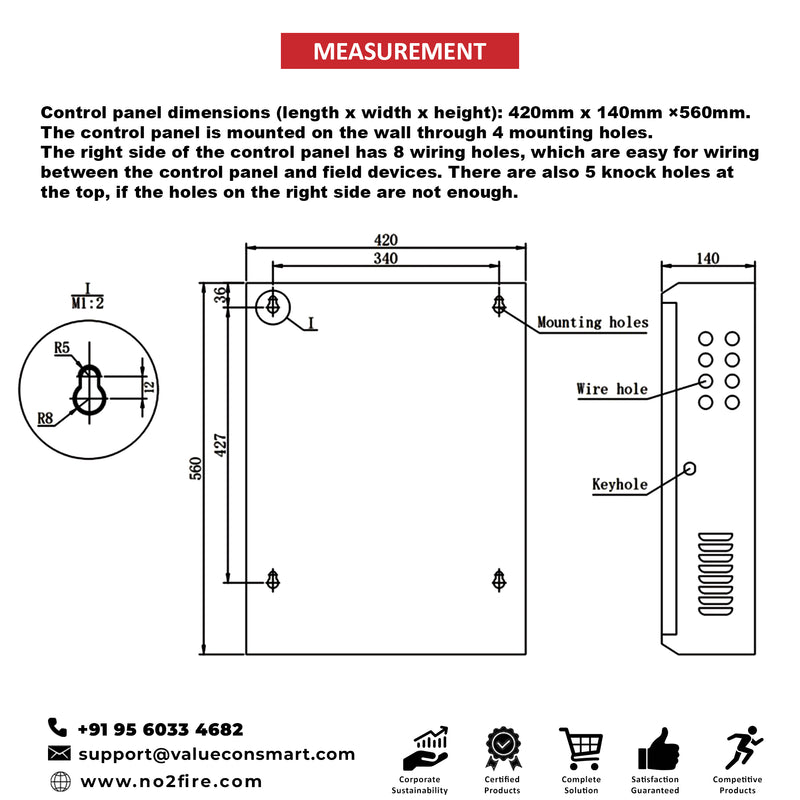

    Dimension 420mmx140mmx560mm
