Product Specifications
|
Brand |
Notofire |
|
Product Type |
NF5161, NF5162, NF5163 |
|
System components |
Smoke detector |
|
Type |
Fully automatic |
|
Application |
Restaurants, Hotels, Office Buildings, Schools, Colleges, Buildings, Warehouses, Power Plants, etc.
|
|
Alarm sensor type |
Optical |
|
Power source |
Electric |
|
Body material |
Plastic |
|
Colour |
White |
|
Dimensions |
100x51 mm(DxH) |
|
Weight |
110g |
|
Operating voltage |
24V |
|
Standard |
EN54 |
|
Country of origin |
India |
|
Approvals |
LPCB |
|
Operating current |
0.3mA |
|
Indicator |
Red Flashes When Polling |
|
Coding method |
Electronically coding |
|
Monitoring area |
6 meter |
|
Wiring |

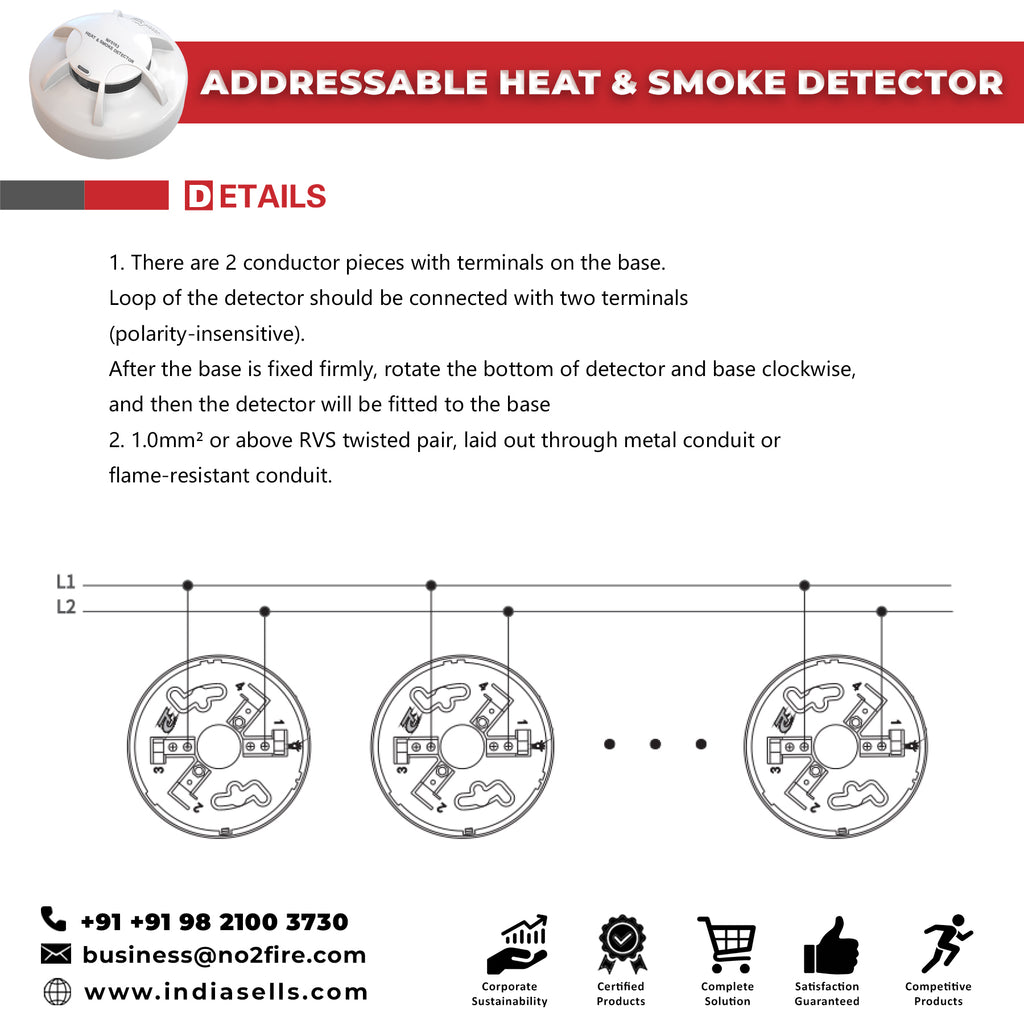

Non-Polarized Signal 2-Wire |
|
Mounting hole distance |
60mm |
Product Description

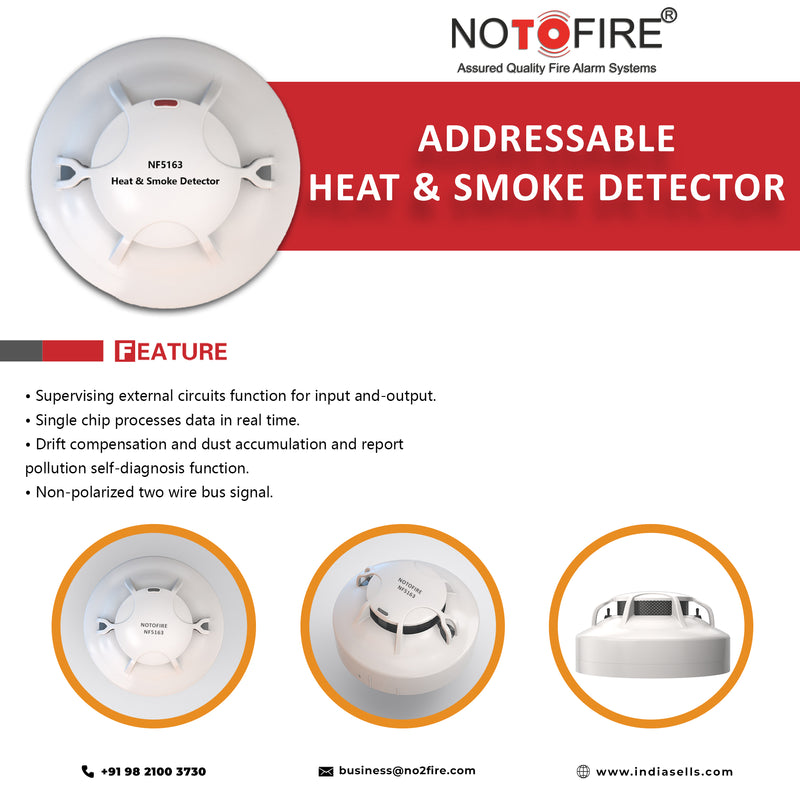

NF5163 is a smart combination technology of smoke detectors and heat detectors. The detector has the advantages of both a photoelectric smoke detector and a rate of rising and fixed temperature heat detector. It overcomes the non-sensitivity to dark smoke particles of ordinary scattering type photoelectric detectors. With a unique structure and appealing appearance, the detector has stable and reliable performance and high damp-proof ability.
Features
- The detector can be addressed in the field by using Hand-held Encoder, which is easy and reliable for commissioning.
- Single-chip uses real-time sampling and a data processing system.
- Temperature and humidity dirt compensation, dust accumulation degree and fault detection function.
- Self-diagnostic function.
